Txheej txheem cej luam

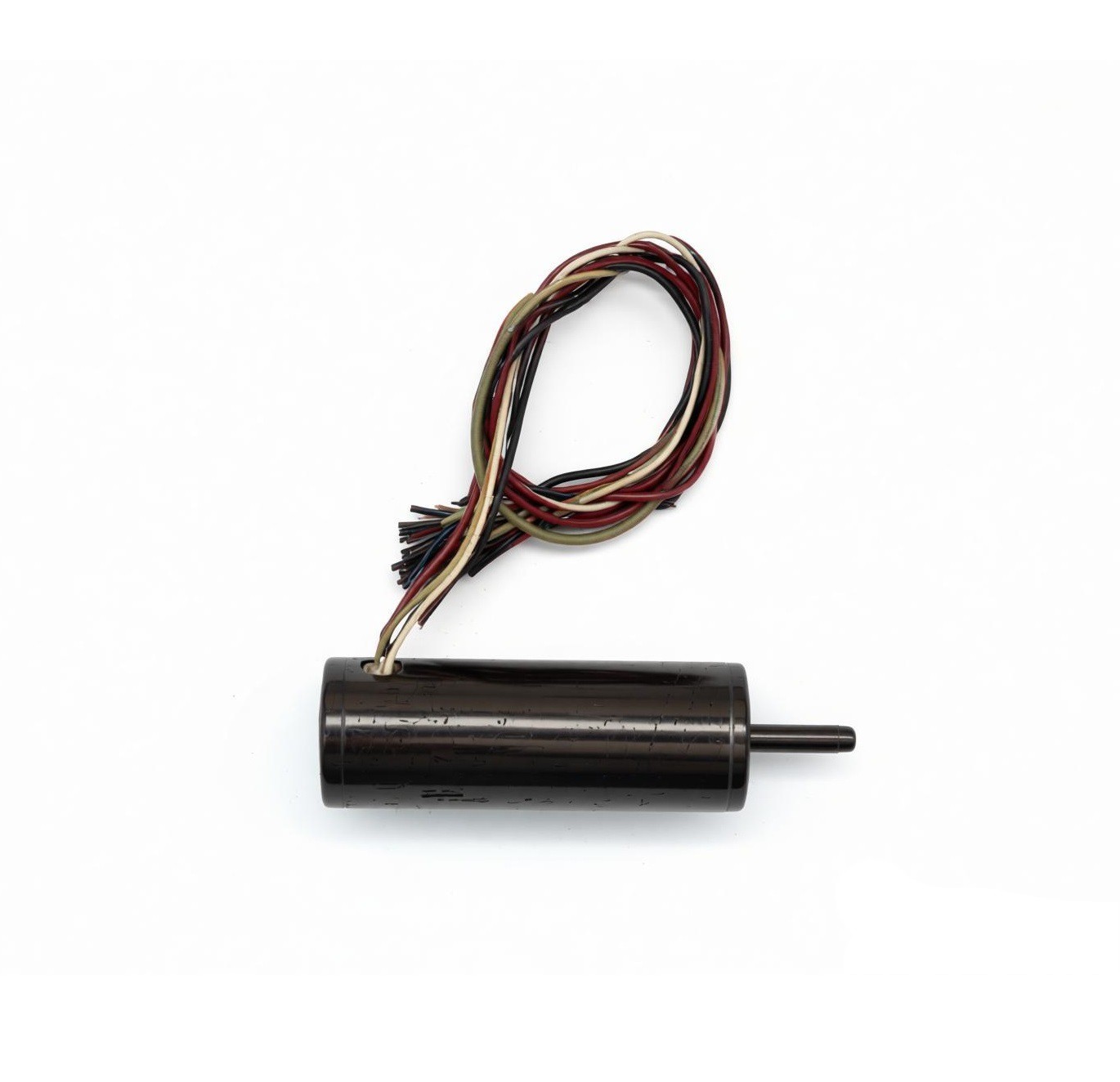

DC brushed coreless khob lub cev muaj zog ua ke nrog ntau yam thev naus laus zis tseem ceeb. Nyob rau hauv cov nqe lus ntawm cov qauv, nws tawg los ntawm ib txwm lub cev muaj zog rotor qauv daim ntawv thiab txais ib tug coreless rotor, kuj hu ua ib tug hollow khob rotor. Cov qauv rotor tshiab no tshem tawm tag nrho cov hluav taws xob hluav taws xob poob los ntawm cov eddy tam sim no tsim los ntawm cov tub ntxhais hlau. Nyob rau tib lub sijhawm, nws qhov hnyav thiab kev sib hloov inertia tau txo qis heev, thiab nws tiv taus qhov kub thiab txias, yog li txo cov neeg kho tshuab lub zog poob ntawm lub rotor nws tus kheej. Qhov no ua tiav kev ua tau zoo ntawm lub cev muaj zog ntau dua hauv cov ncej me, yog li muab cov neeg siv nrog kev nplij siab thiab yooj yim dua.
Daim ntawv thov
Daim ntawv thov ntawm coreless khob motors tau tsim sai heev nyob rau hauv kaum xyoo dhau los, nthuav los ntawm cov tub rog thiab siab -tech fields mus rau loj industrial thiab pej xeem teb. Tshwj xeeb tshaj yog nyob rau hauv industrialized lub teb chaws, lawv tau koom nyob rau hauv feem ntau industries thiab ntau yam khoom.
Technical Data
|
Yam khoom qauv |
Rated voltage (V) |
Rated tam sim no (A) |
Rated Ceev (r/min) |
Rated Torque (mNm) |
Qhov hnyav (g) |
|
J14SYK01 |
12 |
Tsawg dua lossis sib npaug li 0.75 |
7400 |
Ntau dua lossis sib npaug 7 |
Tsawg dua los yog sib npaug li 30 |
|
J14SYK02 |
12 |
Tsawg dua lossis sib npaug li 0.75 |
22400 |
Ntau dua lossis sib npaug li 2.5 |
Tsawg dua los yog sib npaug li 30 |
|
J16SYK01 |
24 |
Tsawg dua lossis sib npaug li 0.75 |
11000 |
Ntau dua lossis sib npaug li 12 |
Tsawg dua los yog sib npaug li 45 |
|
J17SYK01 |
12 |
Tsawg dua los yog sib npaug li 0.25 |
4600 |
Ntau dua lossis sib npaug rau 3.2 |
Tsawg dua los yog sib npaug li 40 |
|
J19SYK01 |
24 |
Tsawg dua lossis sib npaug li 0.75 |
10700 |
Ntau dua lossis sib npaug 11 |
Tsawg dua los yog sib npaug li 50 |
|
J20SYK01 |
6 |
Tsawg dua lossis sib npaug li 0.12 |
3000 |
Ntau tshaj los yog sib npaug rau 10 |
Tsawg dua los yog sib npaug li 55 |
|
J22SYK01 |
12 |
Tsawg dua los yog sib npaug li 0.4 |
5300 |
Ntau dua lossis sib npaug rau 3.9 |
Tsawg dua los yog sib npaug li 65 |
|
J22SYK02 |
24 |
Tsawg dua lossis sib npaug li 0.9 |
11000 |
Ntau dua lossis sib npaug li 12 |
Tsawg dua los yog sib npaug li 75 |
|
J22SYK03 |
36 |
Tsawg dua los yog sib npaug rau 1.9 |
10600 |
Ntau dua lossis sib npaug li 26.5 |
Tsawg dua los yog sib npaug li 75 |
|
J25SYK01 |
24 |
Tsawg dua los yog sib npaug rau 1.8 |
9700 |
Ntau dua lossis sib npaug li 31 |
Tsawg dua los yog sib npaug li 110 |
|
J30SYK01 |
24 |
Tsawg dua lossis sib npaug li 3.8 |
8100 |
Ntau dua lossis sib npaug li 85 |
Tsawg dua lossis sib npaug li 245 |
|
J30SYK02 |
48 |
Tsawg dua los yog sib npaug rau 1.9 |
7750 |
Ntau dua lossis sib npaug li 92 |
Tsawg dua lossis sib npaug li 260 |
|
J35SYK01 |
24 |
Tsawg dua los yog sib npaug 4 |
7000 |
Ntau dua lossis sib npaug rau 105 |
Tsawg dua lossis sib npaug li 350 |
|
J40SYK01 |
24 |
Tsawg dua los yog sib npaug li 7 |
7030 |
Ntau dua lossis sib npaug rau 181 |
Tsawg dua los yog sib npaug li 450 |
SHINHOM tau mob siab rau teeb tsa lub siab zoo rau kev lag luam uas sib koom lossis siv cov cuab yeej sib nqus hauv peb.DC Brushless Coreless khob Tsavcov khoom.
